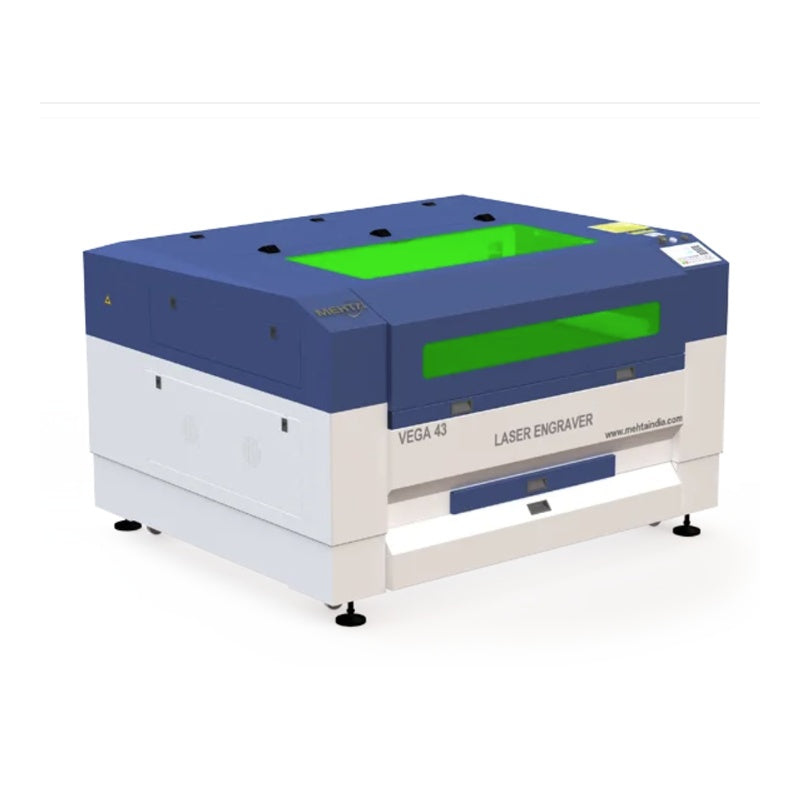

VEGA 43 - 130W CO2 Laser Cutting and Engraving Machine
The VEGA-II 43 is a high-speed, high-precision CO2 laser cutting and engraving machine with a 1220 x 915 mm (4 ft x 3 ft) working area. Driven by an AC servo motor for smooth, accurate movement and equipped with a sealed glass laser tube, it is the professional choice for acrylic cutting, engraving, and mixed-material processing.
Key Features
- AC Servo Motor drive system (Japan) for precise, high-speed positioning
- Red beam dot pointer for accurate job alignment
- USB flash drive support - run jobs directly without a PC
- Power brake function - resume work after power outages
- Heavy-duty air-assist compressor with adjustable focus to prevent edge burning
- High-quality chiller unit extending laser tube lifespan
- Real-time file path display during operation
- Vibration-free foot-mounting adjustment system
Technical Specifications
| Laser Power | 130W (100 / 130 / 150W options available) |
| Laser Source | Sealed Glass CO2 Tube |
| Working Area | 1220 x 915 mm (48 x 36 inch) |
| Max Speed | 40 IPS |
| Drive System | AC Servo Control (Japan) |
| Positioning Accuracy | 0.02 mm |
| Max Resolution | 4500 DPI |
| Max Cutting Depth | 20 mm acrylic |
| Cooling | Water Cooled |
| Speed/Power Control | 0.1-100% (20 colour-linked settings) |
| Supported File Formats | PLT, DXF, BMP, JPG, AI, GIP, TIF |
