Description

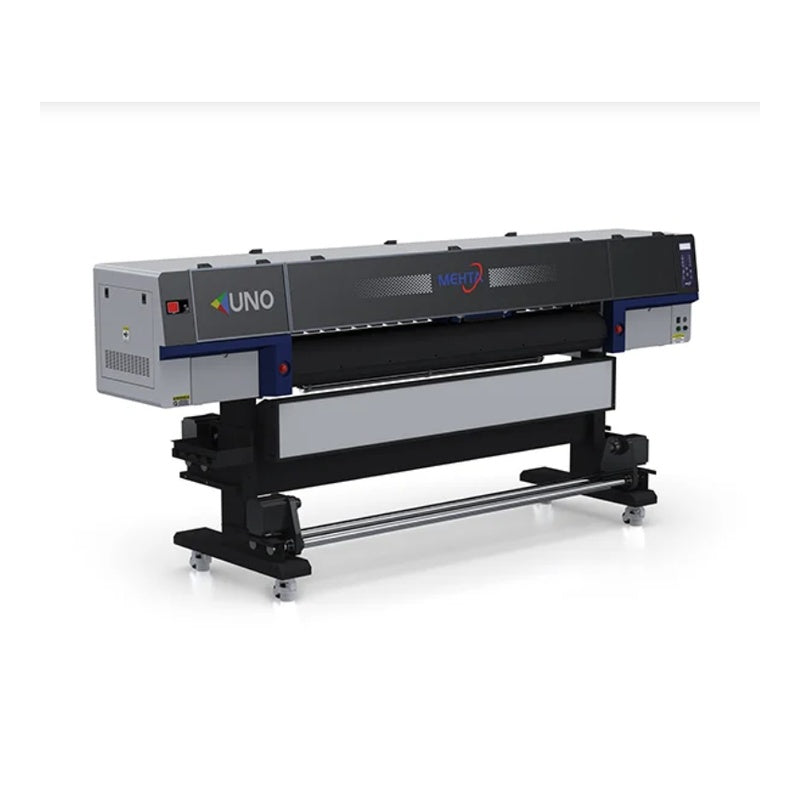

UNO 1802 UV Roll-to-Roll Printer
The UNO 1802 is a UV ink-based roll-to-roll digital printer designed for flexible materials including banners, vinyl, and PVC films. Equipped with dual Epson i3200-U1 printheads delivering 600 dpi resolution, it combines cost-effective operation with professional print quality - including an optional white ink channel for printing on dark or transparent media.
Key Features
- 2x Epson i3200-U1 drop-on-demand piezo printheads - 600 dpi, UV ink compatible
- CMYK + White ink option for printing on dark or transparent substrates
- Anti-collision detection protecting printheads from damage
- Forward and reverse winding with adjustable roll widths
- Intelligent negative pressure system for consistent ink delivery
- Silent high-precision linear rail with German IGUS carrier chain
- Compatible media: banners, coated PP, vinyl, PVC film, backlit, PET film
Technical Specifications
| Print Heads | 2x Epson i3200-U1 |
| Ink Type | UV |
| Ink Colours | CMYK or CMYK+White |
| Max Print Width | 1800 mm |
| Production Speed (4-Pass) | 352 sq.ft./hr @ 360x1200 dpi |
| Max Roll Diameter | 300 mm |
| Max Roll Weight | 50 kg |
| Operating Conditions | 23-29 C, 50-80% humidity |
| Power Supply | Single Phase 220V +/-10%, 50Hz |
| Dimensions (L x W x H) | 3250 x 1451 x 960 mm |
| Weight | 500 kg |
| Connectivity | Ethernet 1 Gbps |
