Description

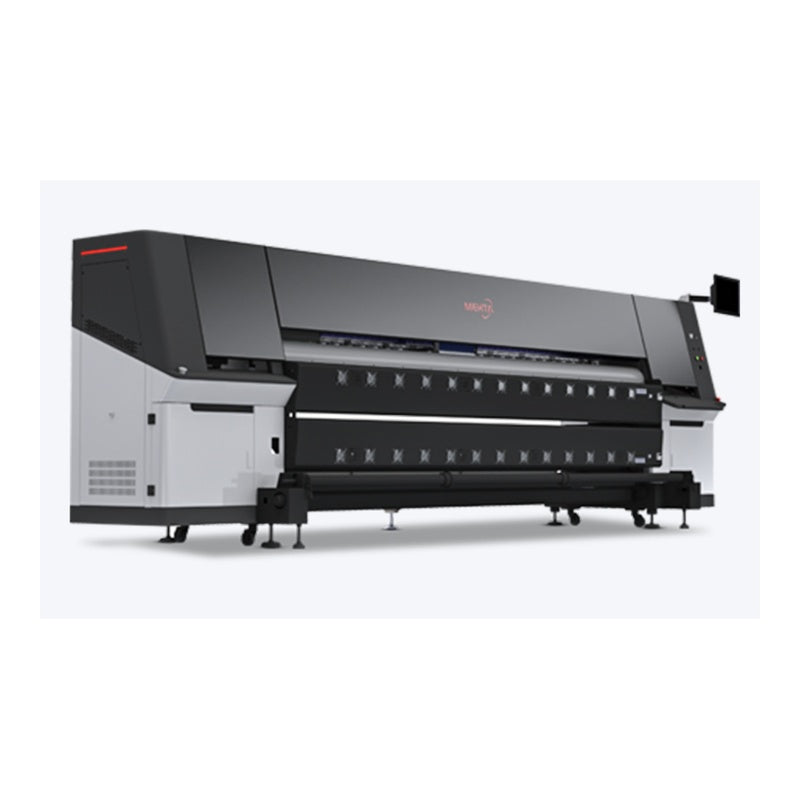

Prinzo 3.2 m Eco-Solvent Printer
The Prinzo is a next-generation 3.2 m wide eco-solvent printer powered by EPSON T3200 U3 printheads with a 5 pL droplet size and a Panasonic A6 servo drive system. Engineered for high-volume sign and display production, it delivers exceptional speed, precision, and durability on paper, PVC, vinyl, banners, and films.
Key Features
- EPSON T3200 U3 printheads - 5 pL droplet, variable dot, drop-on-demand piezo
- Panasonic A6 servo system for high-torque, low-vibration printing
- CNC aluminium beam with dual linear guides for rapid output
- German IGUS carrier chains - reduced friction and noise
- Pre, mid, and post-heating stages with IR + fan drying
- Anti-collision protection during high-speed operation
- Automatic negative pressure adjustment for consistent ink delivery
- Individual cleaning mechanism minimising ink waste
Technical Specifications
| Print Heads | 2x EPSON T3200 U3 (3202T) or 4x (3204T) |
| Max Print Width | 3200 mm |
| Max Speed - 2 heads (3-Pass) | 700 sq.ft./hr |
| Max Speed - 4 heads (3-Pass) | 1400 sq.ft./hr |
| Resolution Range | 720x900 to 720x1800 dpi |
| Ink System | CMYK eco-solvent |
| Media Support | Paper, PVC, vinyl, banners, films |
| Power Supply | 220V AC, 10A (printer) + 32A (heater) |
| Dimensions (L x W x H) | 5446 x 1194 x 1565 mm |
| Weight | 1150 kg |
| Connectivity | USB 3.0 / Ethernet |
| Compatible RIP Software | ONYX RIP Center / RIIN RIP |
