Description

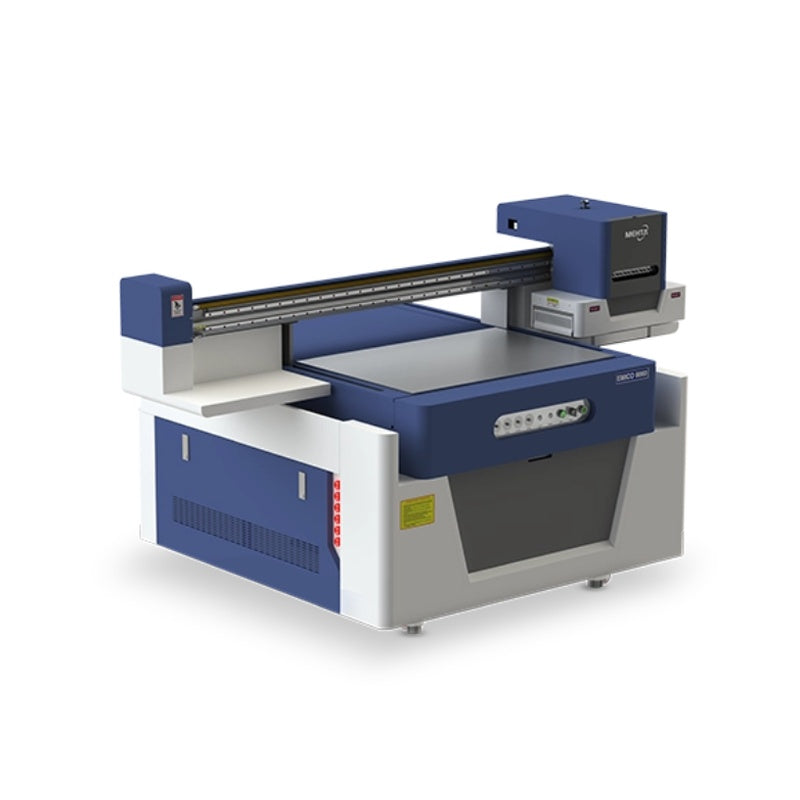

EMICO 9060 UV Flatbed Printer
The EMICO 9060 is a compact yet powerful UV flatbed printer designed for printing on rigid materials including acrylic, glass, wood, PVC, and ceramics. Featuring Epson i3200 U1 printheads with CMYK, white, and varnish ink capability, it delivers professional-quality output with an optional rotary attachment for cylindrical objects.
Key Features
- Epson i3200 U1 printheads - 600 dpi high-density resolution, variable dot technology
- CMYK + White + Varnish ink system for layered, textured prints
- UV LED curable ink - instant curing, low heat output
- Vacuum table for precise rigid media positioning
- Anti-collision sensor protecting printheads from damage
- Optional rotary attachment for cylinders 30-150 mm dia., up to 400 mm long
- Compatible substrates: acrylic, aluminium, foam board, PVC, leather, glass, wood, ceramic
Technical Specifications
| Print Heads | Epson i3200 U1 |
| Printing Area | 900 x 600 mm |
| Ink System | CMYK / CMYK+W+V bulk supply - 500 ml tanks |
| Max Resolution | 1800 dpi (6-pass) |
| Print Speed | 4.2-6.3 min per sheet |
| Media Types | Acrylic, aluminium, foam board, PVC, leather, glass, wood, ceramic |
| Power Supply | 220V AC, 50Hz single phase |
| Dimensions (L x W x H) | 2120 x 1440 x 1300 mm |
| Weight | 400 kg |
