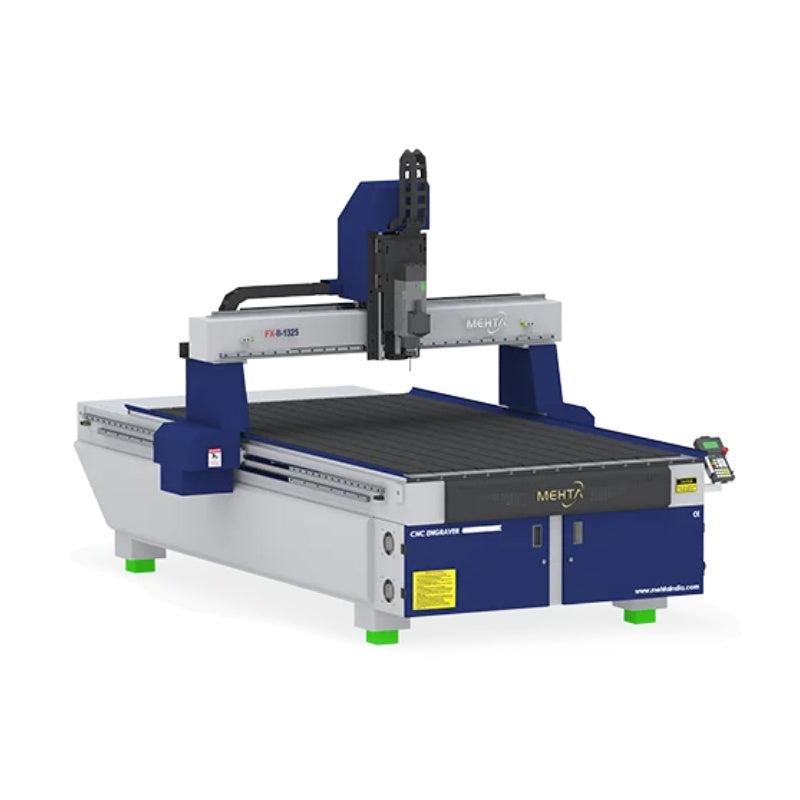

FX-1325 - 6kW Air-Cooled CNC Router
The FX-1325 sets the standard for high-speed 2D and 3D precision in wood and sign-making applications. Combining an AC Servo Motor with a 6 kW air-cooled Italian spindle, 25 mm linear guideways, and helical rack-and-pinion transmission on the X and Y axes, it delivers industry-leading accuracy and durability for demanding production environments.
Key Features
- 6 kW Italian air-cooled spindle at 18,000 RPM - stable, maintenance-free performance
- 25 mm precision linear guideways for high positional accuracy and long service life
- Helical rack-and-pinion transmission (X/Y axes) and ball screw (Z axis)
- AC Servo Motor drive for high-speed, accurate positioning
- Semi-automatic lubrication system reducing maintenance overhead
- Aluminium T-slot table with protective PVC cover
- DSP hand-held controller for easy stand-alone operation
- Accommodates cutting tools 3-16 mm in diameter
Technical Specifications
| Working Area | 1300 x 2500 x 200 mm |
| Spindle Power | 6 kW Air-Cooled |
| Spindle Speed | 18,000 RPM |
| Max Travel Speed | 30 m/min |
| Drive System | AC Servo Motor (X/Y) + Ball Screw (Z) |
| Linear Guides | 25 mm precision guideways |
| Table Type | Aluminium T-slot with PVC cover |
| Power Supply | AC 420V / 3-Phase |
| Weight | 970 kg |
| Controller | DSP Hand-Held |
